-₦3,822.29

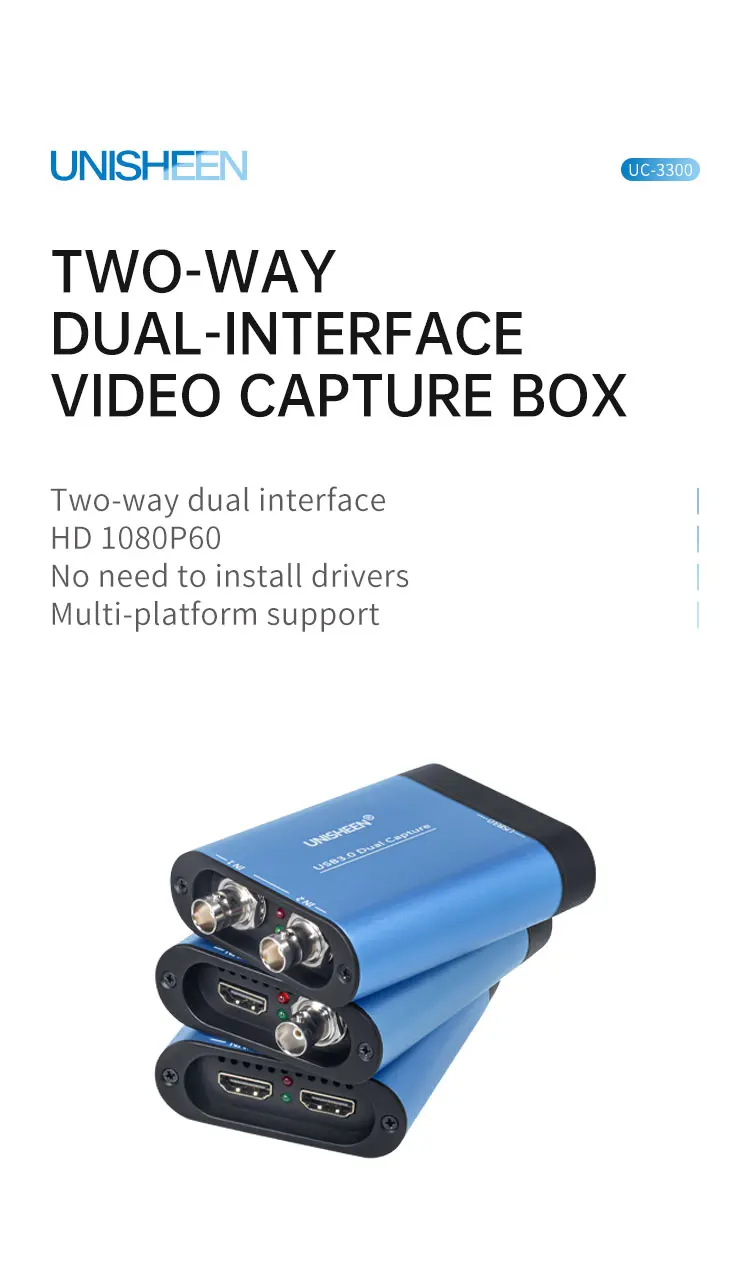

USB3.0 60FPS DUAL SDI HDMI VIDEO CAPTURE Card Box FPGA Grabber Dongle Game Streaming Equipment Live Broadcast 1080P OBS vMix

Name: USB3.0 60FPS DUAL SDI HDMI VIDEO CAPTURE Card Box FPGA Grabber Dongle Game Streaming Equipment Live Broadcast 1080P OBS vMix
SKU: 6675
Price: 72623.63 NGN
Availability: InStock

Category: Electronics

Original price was: ₦76,445.92.Current price is: ₦72,623.63.

Add to wishlist

Ask a Question

Compare

Product Description

Due to the limitation of the Apple system ( It just allocates only one divice’s name ) , the SDI can not be shown on the Apple computer. So if you use it on Apple computer , Please update to MacOS Monterey 12.0 beta above .but on Windows and Linux systems , it works pretty well !If you just have Mac system please don’t order, thank you ~

Features:

1. Connect multiple dongles to one machine

2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate

3. Support brightness, contrast, hue, saturation, and other screen adjustment functions

4. The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output

5. The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output

6. The video processing engine can be updated via firmware without changing the hardware.

7. Automatically detect and de-interlace signals

8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.

Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)

9. Easy to Use: No need to install drivers in Windows, Linux, and OS X, real plug and play.

Compatibility:

1. Compatible with various USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x1

2. Compatible with USB 2.0

3. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)

4. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime

5. Support software including Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and etc.

Excellent Video Processing:

1. Support up to 1920x1200p60 (CVT-RB) Video Input

2. Video output support up to 1920x1200p60 in YUY2

3. Video output support up to 1920x1200p60 in RGB24

4. The process of video and audio is done by the dongle and will not occupy CPU.

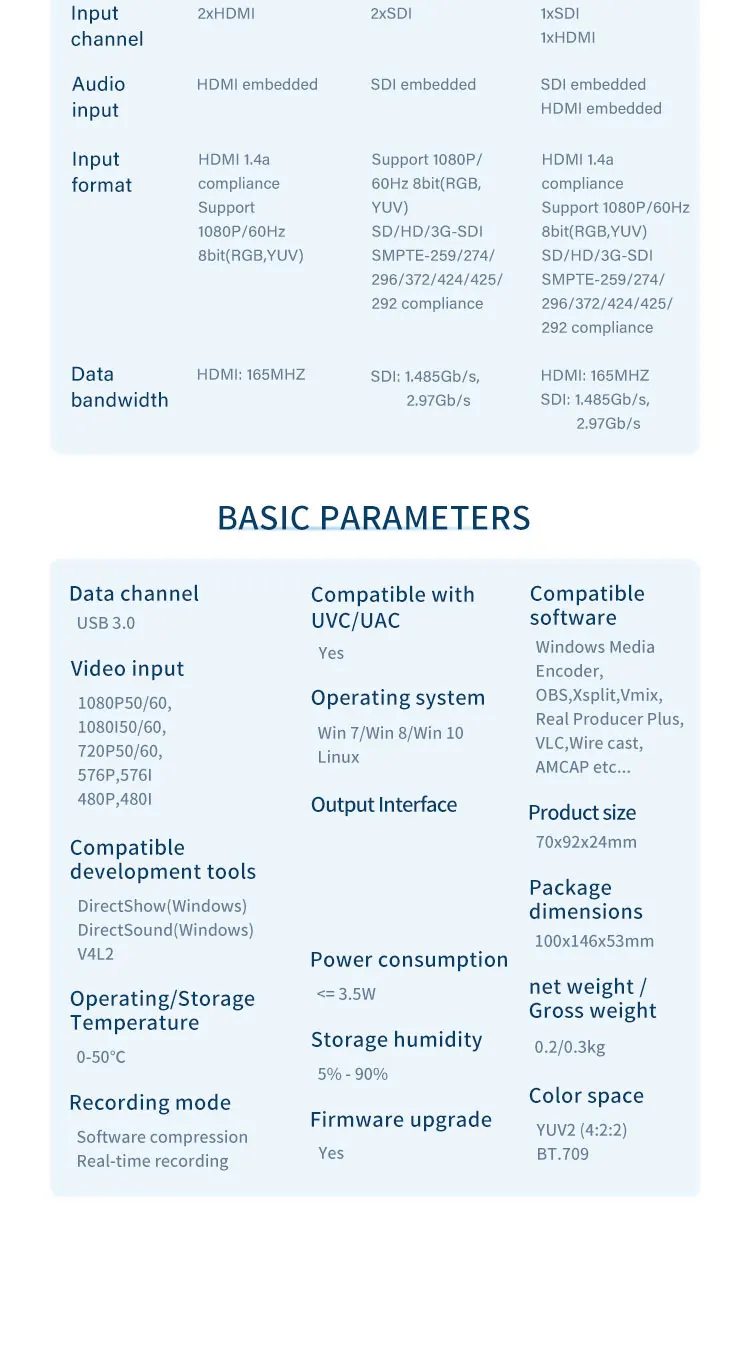

Specifications:

Connection
Host Interface	USB3.0, 300-350MB/s throughput USB2.0, 40MB/s throughput

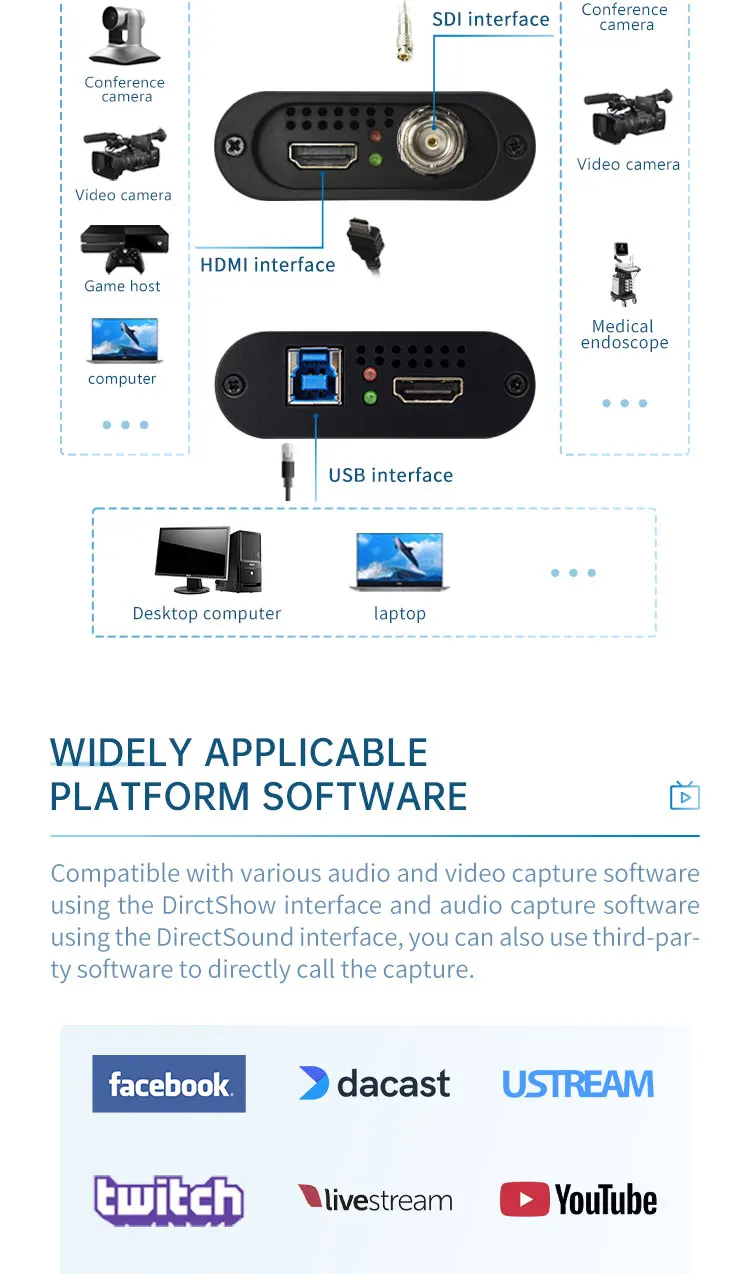

Input Interface	1 HDMI interface/1 SDI interface
HDMI Video Input	1 1080P/60HZ HD HDMI signal or SDI signal
HDMI Audio Input	1 LPCM audio signal
Standard
HDMI Input Formats	It meets HDMI 1.4a standard and supports 1080p/60Hz 8-bit, (RGB, YUV) or HD-SDI/3G-SDI
Output Formats	Up to 48KHz, 85db, 24-bit
Video Sampling Rate	HDMI: 165MHz
Audio and Video Capture	It meets the standards of UVC (USB video class) and UAC(USB audio class)
Output Color Space	YUY2, RGB24
Video Processing
Switch of Color Space	Hardware Color Switch
Image Scale	Hardware Scale
Image Adjustment	The image adjustment of brightness, contrast, hue, saturation
Others
OS Support	It supports the following operating systems (x86 and x64 versions): Windows 7 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) OS X (10.8 and above)
Software Compatibility	Windows Media Encoder (Windows) Adobe Flash Media Live Encoder(Windows, OS X) Real Producer Plus(Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X) Wirecast (Windows, OS X), etc.
